产品中心PCBN车刀片

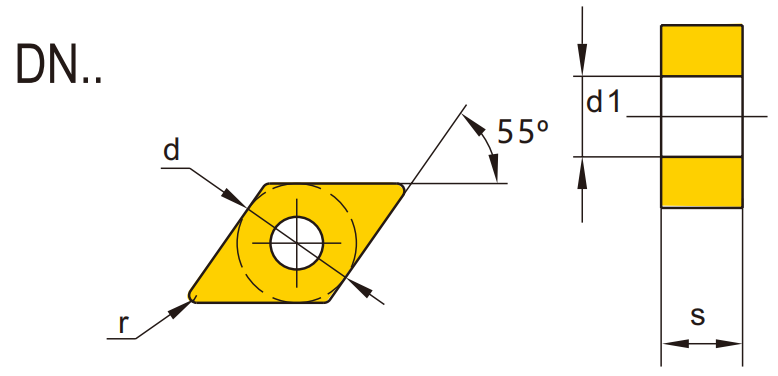

DN系列
| 型 号 Model |
尺寸 | ||
|---|---|---|---|
| d | s | d1 | |
| DN..1104.. | 9.525 | 4.76 | 3.81 |
| DN..1504.. | 12.7 | 4.76 | 3.81 |
| DN..1506.. | 12.7 | 6.35 | 5.16 |
| 4NR-DN..1506.. | 12.7 | 6.00 | 5.16 |
主要参数

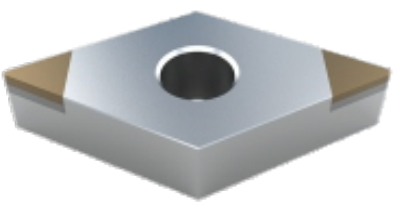

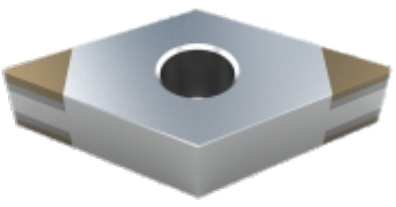

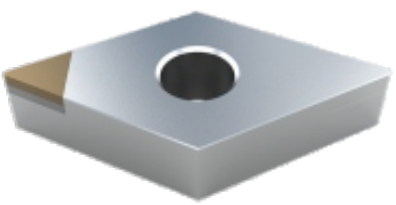

| 刀片外形 Insert shape |
型号 Model |
刀片材质及适用加工材料Insert grades and application | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| r | 倒棱 S02020 |
倒棱 S01525 |
KBN1000 | KBN900 | KBN910 | KBN980 | KBN710 | KBN7030 | KBN6020 | KBN610 | KBN5010 | ||
  |
4NU-DNGA150404
|
0.4 |   |
|
  |
|
|||||||
|
4NU-DNGA150408
|
0.8 | |
|
|
|
||||||||
|
4NU-DNGA150412
|
1.2 | |
|
|
|
||||||||
|
4NU-DNGA150604
|
0.4 | |
|
|
|
||||||||
|
4NU-DNGA150608
|
0.8 | |
|
|
|
||||||||
|
4NU-DNGA150612
|
1.2 | |
|
|
|
||||||||
  |
2NU-DNGA150404 | 0.4 | |
|
|
|
|
|
|
|
|||
| 2NU-DNGA150408 | 0.8 | |
|
|
|
|
|
|
|
||||
| 2NU-DNGA150412 | 1.2 | |
|
|
|
|
|
|
|
||||
| 2NU-DNGA150604 | 0.4 | |
|
|
|
|
|
|
|||||
| 2NU-DNGA150608 | 0.8 | |
|
|
|
|
|
|
|||||
| 2NU-DNGA150612 | 1.2 | |
|
|
|
|
|
|
|||||
 |
1NU-DNGA150404
|
0.4 | |
|
|
|
|||||||
|
1NU-DNGA150408
|
0.8 | |
|
|
|
||||||||
|
1NU-DNGA150412
|
1.2 | |
|
|
|
||||||||
|
1NU-DNGA150604
|
0.4 | |
|
|
|
||||||||
| 1NU-DNGA150608 | 0.8 | |
|
|
|
||||||||
| 1NU-DNGA150612 | 1.2 | |
|
|
|
||||||||
 |
4NR-DNGA150404
|
0.8 | |
|
|||||||||
|
4NR-DNGA150408
|
1.2 | |
|
||||||||||
|
4NR-DNGA150412
|
1.2 | |
|
||||||||||
| 铸铁Cast Iron |  |
|
|
|
|||||||||
| 耐热合金Heat Resistant Alloy |  |
||||||||||||
| 淬硬钢Hardened Steel | |
|
|
|
|
||||||||
