产品中心PCBN车刀片

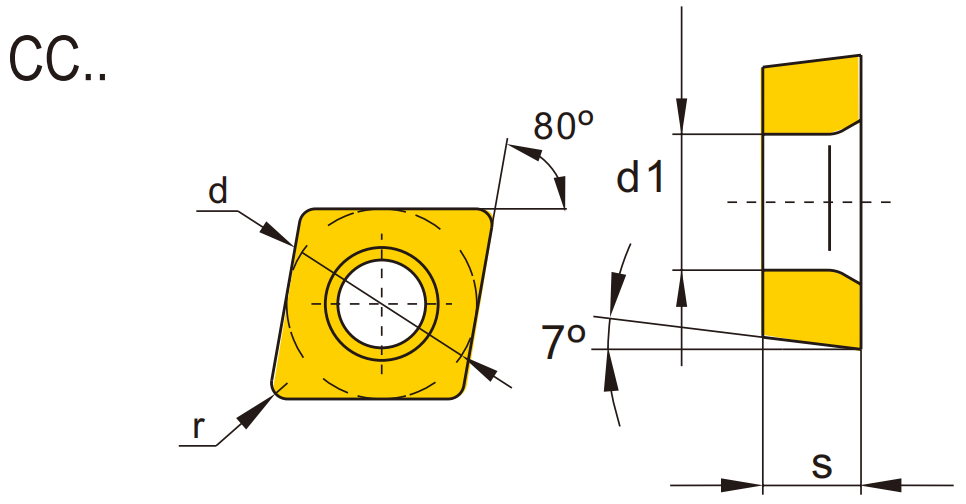

CC系列
| 型 号 Model |
尺寸 | ||
|---|---|---|---|
| d | s | d1 | |
| CC..0301.. | 3.5 | 1.4 | 1.9 |
| CC..0401.. | 4.3 | 1.8 | 2.3 |
| CC..0602.. | 6.35 | 2.38 | 2.8 |
| CC..09T3.. | 9.525 | 3.97 | 4.4 |
| CC..1204.. | 12.7 | 4.76 | 5.5 |
主要参数
| 刀片外形 Insert shape |
型号 Model |
刀片材质及适用加工材料Insert grades and application | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| r | 倒棱 S02020 |
倒棱 S01525 |
KBN1000 | KBN900 | KBN910 | KBN980 | KBN710 | KBN7030 | KBN6020 | KBN610 | KBN5010 | ||
  |
2NU-CCGW060202 | 0.4 |   |
|
  |
|
|
|
|
|
|||
|
2NU-CCGW060204
|
0.8 | |
|
|
|
|
|
|
|
||||
|
2NU-CCGW060208
|
1.2 | |
|
|
|
|
|
|
|
||||
| 2NU-CCGW09T302 |
0.4 | |
|
|
|
|
|
|
|
||||
|
2NU-CCGW09T304
|
0.8 | |
|
|
|
|
|
|
|
||||
|
2NU-CCGW09T308
|
1.2 | |
|
|
|
|
|
|
|
||||
  |
1NU-CCGW030102
|
0.2 | |
|
|
|
|
|
|
|
|||
|
1NU-CCGW030104
|
0.4 | |
|
|
|
|
|
|
|
||||
|
1NU-CCGW040102
|
0.2 | |
|
|
|
||||||||
|
1NU-CCGW040104
|
0.4 | |
|
|
|
||||||||
|
1NU-CCGW060102
|
0.2 | |
|
|
|
||||||||
| 1NU-CCGW060104 | 0.4 | |
|
|
|
||||||||
| 1NU-CCGW060108 | 0.8 | |
|
|
|
||||||||
|
1NU-CCGW09T302
|
0.2 | |
|
|
|
||||||||
|
1NU-CCGW09T304
|
0.4 | |
|
|
|
||||||||
|
1NU-CCGW09T308
|
0.8 | |
|
|
|
||||||||
 |
T2NU-CCGW060202
|
0.4 | |
|
|
|
|
||||||
|
T2NU-CCGW060204
|
0.8 | |
|
|
|
|
|||||||
|
T2NU-CCGW060208
|
1.2 | |
|
|
|
|
|||||||
|
T2NU-CCGW09T302
|
0.4 | |
|
|
|
|
|||||||
|
T2NU-CCGW09T304
|
0.8 | |
|
|
|
|
|||||||
|
T2NU-CCGW09T308
|
1.2 | |
|
|
|
|
|||||||
| 铸铁Cast Iron |  |
|
|
|
|||||||||
| 耐热合金Heat Resistant Alloy |  |
||||||||||||
| 淬硬钢Hardened Steel | |
|
|
|
|
||||||||
