产品中心材料一
PCB系列

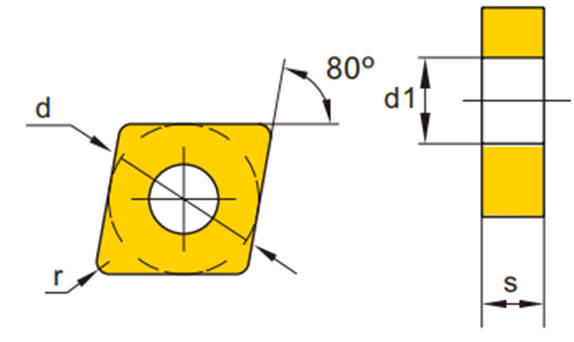

| 型 号 Model |
尺寸 | ||
|---|---|---|---|
| d | s | d1 | |
| CN..0903.. | 9.525 | 3.18 | 3.18 |
| CN..1204.. | 12.7 | 4.76 | 5.16 |
| 4N-CN.. 1206.. | 12.7 | 6.00 | 5.16 |
| CN.. 1606.. | 16.1 | 6.35 | 6.35 |
| CN.. 1906.. | 19.05 | 6.35 | 7.94 |
| CN.. 2506.. | 25.4 | 9.53 | 9.12 |
主要参数
| 刀片外形 Insert shape |
型号 Model |
刀片材质及适用加工材料Insert grades and application | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| r | 倒棱 S02020 |
倒棱 S01525 |
KBN1000 | KBN900 | KBN910 | KBN980 | KBN710 | KBN7030 | KBN6020 | KBN610 | KBN5010 | ||
 |
4NU-CNGA120404 | 0.4 |  |
|
 |
|
|||||||
| 4NU-CNGA120408 | 0.8 | |
|
|
|
||||||||
| 4NU-CNGA120412 | 1.2 | |
|
|
|
||||||||
| 4NU-CNGA160612 | 1.2 | ||||||||||||
 |
2NU-CNGA120404 | 0.4 | |
|
|
|
|
|
|
|
|||
| 2NU-CNGA120408 | 0.8 | |
|
|
|
|
|
|
|
||||
| 2NU-CNGA120412 | 1.2 | |
|
|
|
|
|
|
|
||||
| 2NU-CNGA160612 | 1.2 | ||||||||||||
 |
1NU-CNGA120404 | 0.4 | |
|
|
||||||||
| 1NU-CNGA120408 | 0.8 | |
|
|
|||||||||
| 1NU-CNGA120412 | 1.2 | |
|
|
|||||||||
 |
4NR-CNGA120408 | 0.8 | |
|
|||||||||
| 4NR-CNGA120412 | 1.2 | |
|
||||||||||
| 4NR-CNGA160612 | 1.2 | |
|
||||||||||
| 铸铁Cast Iron |  |
|
|
|
|||||||||
| 耐热合金Heat Resistant Alloy |  |
||||||||||||
| 淬硬钢Hardened Steel | |
|
|
|
|
||||||||
- 首选Preferred
- 可选optional
- 标准库存standard stock
- 订单生产order production
