Product CenterPCBN Milling insert

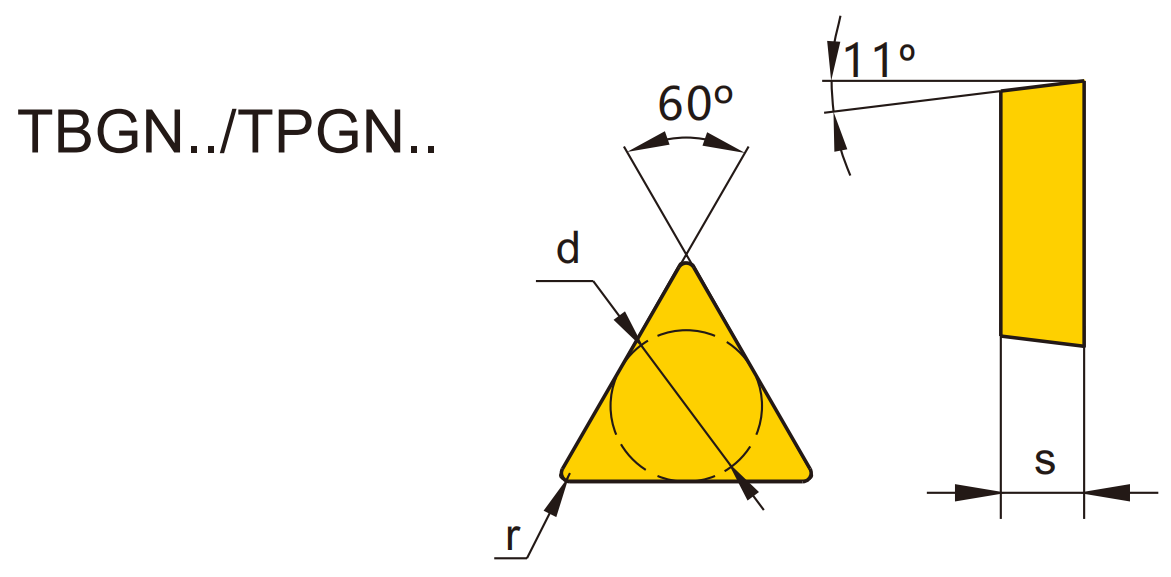

TB/TP系列
| Model | Size(mm) | |
|---|---|---|
| d | s | |
| TB..0601.. | 3.97 | 1.59 |
| TP..0902.. | 5.56 | 2.38 |
| TP..1103.. | 6.35 | 3.18 |
| TP..1603.. | 9.525 | 3.18 |
Parameters
| 刀片外形 Insert shape |
型号 Model |
刀片材质及适用加工材料Insert grades and application | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| r | 倒棱 S02020 |
倒棱 S01525 |
KBN1000 | KBN900 | KBN910 | KBN980 | KBN710 | KBN7030 | KBN6020 | KBN610 | KBN5010 | ||
 |
TBGN060102 | 0.2 |  |
|
 |
|
|||||||
| TBGN060104 | 0.4 | |
|
|
|
||||||||
| TPGN090204 | 0.4 | |
|
|
|
||||||||
| TPGN090208 | 0.8 | |
|
|
|
||||||||
| TPGN110302 | 0.2 | |
|
|
|
||||||||
| TPGN110304 | 0.4 | |
|
|
|
||||||||
| TPGN110308 | 0.8 | |
|
|
|
||||||||
| TPGN160302 | 0.2 | |
|
|
|
||||||||
| TPGN160304 | 0.4 | |
|
|
|
||||||||
| TPGN160308 | 0.8 | |
|
|
|
||||||||
 |
1FN-TBGN060102 | 0.2 | |
|
|
||||||||
| 1FN-TBGN060104 | 0.4 | |
|
|
|||||||||
| 1FN-TPGN090204 | 0.4 | |
|
|
|||||||||
| 1FN-TPGN090208 | 0.8 | |
|
|
|||||||||
| 1FN-TPGN110302 | 0.2 | |
|
|
|||||||||
| 1FN-TPGN110304 | 0.4 | |
|
|
|||||||||
| 1FN-TPGN110308 | 0.8 | |
|
|
|||||||||
| 1FN-TPGN160302 | 0.2 | |
|
|
|||||||||
| 1FN-TPGN160304 | 0.4 | |
|
|
|||||||||
| 1FN-TPGN160308 | 0.8 | |
|
|
|||||||||
| 铸铁Cast Iron |  |
|
|
|
|||||||||
| 耐热合金Heat Resistant Alloy |  |
||||||||||||
| 淬硬钢Hardened Steel | |
|
|
|
|
||||||||
- 首选Preferred
- 可选optional
- 标准库存standard stock
- 订单生产order production
