Product CenterPCBN Turning insert
SN系列

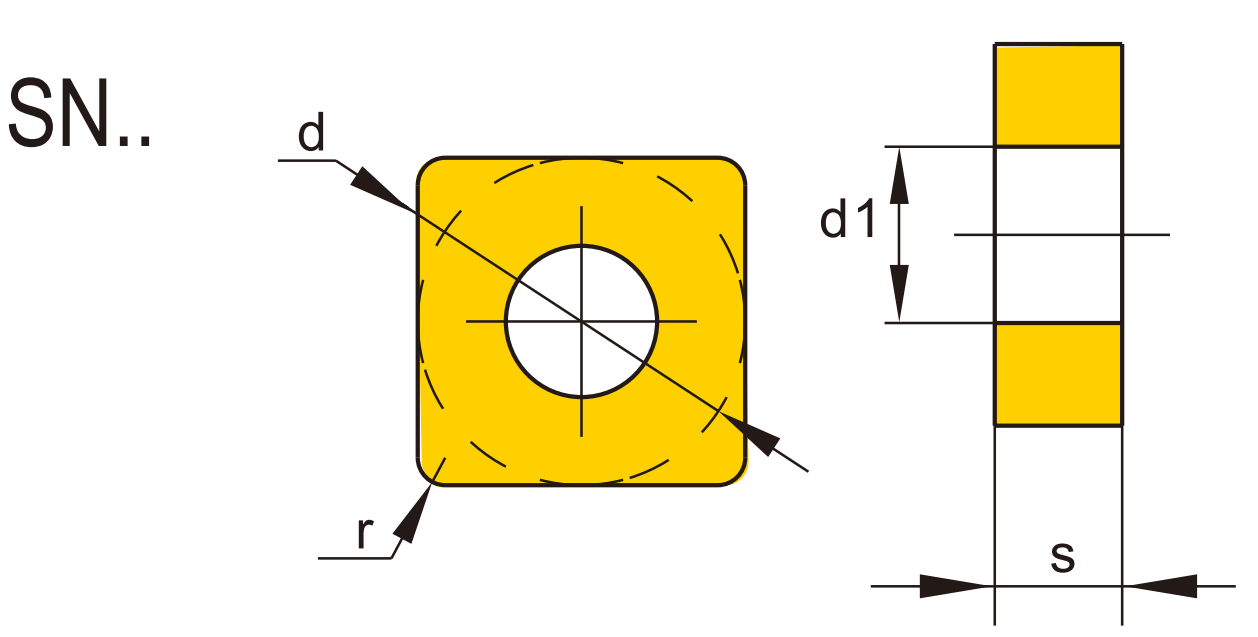

| Model | Size(mm) | ||
|---|---|---|---|
| d | s | d1 | |
| SN..1204.. | 12.7 | 4.76 | 5.16 |
| SN..1506.. | 15.88 | 7.94 | 6.35 |
| SN..11906.. | 19.05 | 6.35 | 7.94 |
| SN..2509.. | 25.4 | 9.53 | 9.12 |
Parameters
| 刀片外形 Insert shape |
型号 Model |
刀片材质及适用加工材料Insert grades and application | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| r | 倒棱 S02020 |
倒棱 S01525 |
KBN1000 | KBN900 | KBN910 | KBN980 | KBN710 | KBN7030 | KBN6020 | KBN610 | KBN5010 | ||
 |
4NU-SNGA120404
|
0.4 |  |
|
 |
|
|||||||
|
4NU-SNGA120408
|
0.8 | |
|
|
|
||||||||
|
4NU-SNGA120412
|
1.2 | |
|
|
|
||||||||
 |
2NU-SNGA120404 | 0.4 | |
|
|
|
|
|
|
|
|||
| 2NU-SNGA120408 | 0.8 | |
|
|
|
|
|
|
|
||||
| 2NU-SNGA120412 | 1.2 | |
|
|
|
|
|
|
|
||||
 |
1NU-SNGA120404 | 0.4 | |
|
|
|
|||||||
| 1NU-SNGA120408 | 0.8 | |
|
|
|
||||||||
| 1NU-SNGA120412 | 1.2 | |
|
|
|
||||||||
| 铸铁Cast Iron |  |
 |
|
|
|
||||||||
| 耐热合金Heat Resistant Alloy |  |
 |
|||||||||||
| 淬硬钢Hardened Steel | |
|
|
|
|
||||||||
