产品中心PCBN车刀片
WN系列

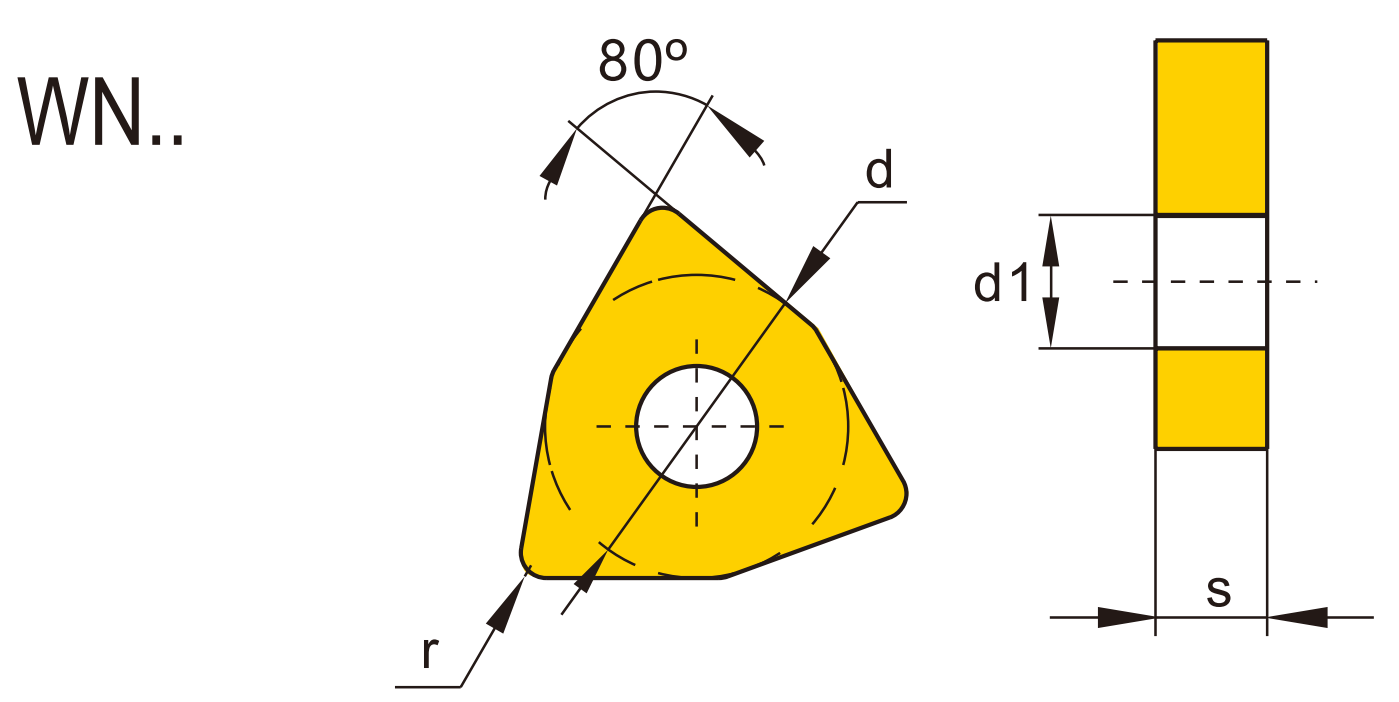

| 型 号 Model |
尺寸 | ||
|---|---|---|---|
| d | s | d1 | |
| WN..0604.. | 9.525 | 4.76 | 3.81 |
| WN..0804.. | 12.7 | 4.76 | 5.16 |
| 6N-WN..0806.. | 12.7 | 6.0 | 5.16 |
主要参数
| 刀片外形 Insert shape |
型号 Model |
刀片材质及适用加工材料Insert grades and application | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| r | 倒棱 S02020 |
倒棱 S01525 |
KBN1000 | KBN900 | KBN910 | KBN980 | KBN710 | KBN7030 | KBN6020 | KBN610 | KBN5010 | ||
 |
6NU-WNGA080404 | 0.4 |  |
|
 |
|
|||||||
|
6NU-WNGA080408
|
0.8 | |
|
|
|
||||||||
|
6NU-WNGA080412
|
1.2 | |
|
|
|
||||||||
 |
3NU-WNGA080404
|
0.4 | |
|
|
|
|
|
|
|
|||
| 3NU-WNGA080408 | 0.8 | |
|
|
|
|
|
|
|
||||
| 3NU-WNGA080412 | 1.2 | |
|
|
|
|
|
|
|
||||
 |
1NU-WNGA080404 | 0.4 | |
|
|
|
|||||||
| 1NU-WNGA080408 | 0.8 | |
|
|
|
||||||||
| 1NU-WNGA080412 | 1.2 | |
|
|
|
||||||||
 |
6NR-WNGA080408 | 0.8 | |
|
|||||||||
| 6NR-WNGA080412 | 1.2 | |
|
||||||||||
| 6NR-WNGA080608 | 0.8 | |
|
||||||||||
| 6NR-WNGA080612 | 1.2 | |
|
||||||||||
| 铸铁Cast Iron |  |
|
|
|
|||||||||
| 耐热合金Heat Resistant Alloy |  |
||||||||||||
| 淬硬钢Hardened Steel | |
|
|
|
|
||||||||
