产品中心PCBN车刀片

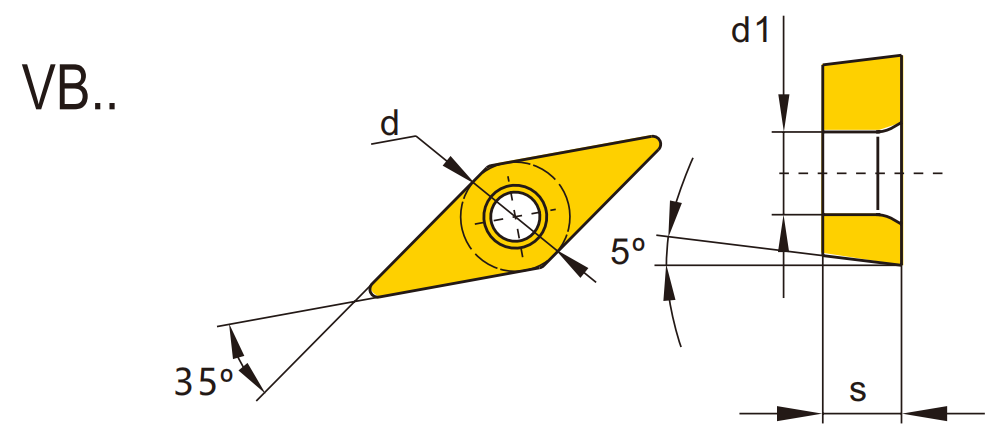

VB系列
| 型 号 Model |
尺寸 | ||
|---|---|---|---|
| d | s | d1 | |
| VB..1103.. | 6.35 | 3.18 | 2.8 |
| VB..1604.. | 9.525 | 4.76 | 4.4 |
主要参数
| 刀片外形 Insert shape |
型号 Model |
刀片材质及适用加工材料Insert grades and application | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| r | 倒棱 S02020 |
倒棱 S01525 |
KBN1000 | KBN900 | KBN910 | KBN980 | KBN710 | KBN7030 | KBN6020 | KBN610 | KBN5010 | ||
 |
2NU-VBGW110302
|
0.2 |  |
|
 |
|
|
|
|
|
|||
|
2NU-VBGW110304
|
0.4 | |
|
|
|
|
|
|
|
||||
|
2NU-VBGW110308
|
0.8 | |
|
|
|
|
|
|
|
||||
|
2NU-VBGW160402
|
0.2 | |
|
|
|
|
|
|
|
||||
| 2NU-VBGW160404 | 0.4 | |
|
|
|
|
|
|
|
||||
| 2NU-VBGW160408 | 0.8 | |
|
|
|
|
|
|
|
||||
 |
1NU-VBGW110302 | 0.2 | |
|
|
|
|||||||
| 1NU-VBGW110304 | 0.4 | |
|
|
|
||||||||
| 1NU-VBGW110308 | 0.8 | |
|
|
|
||||||||
| 1NU-VBGW160402 | 0.2 | |
|
|
|
||||||||
| 1NU-VBGW160404 | 0.4 | |
|
|
|
||||||||
| 1NU-VBGW160408 | 0.8 | |
|
|
|
||||||||
| 铸铁Cast Iron |  |
|
|
|
|||||||||
| 耐热合金Heat Resistant Alloy |  |
||||||||||||
| 淬硬钢Hardened Steel | |
|
|
|
|
||||||||
- 首选Preferred
- 可选optional
- 标准库存standard stock
- 订单生产order production
