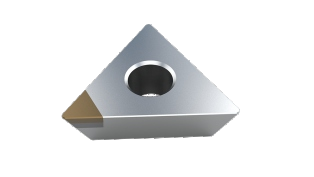

产品中心PCBN车刀片
TB系列/TP系列

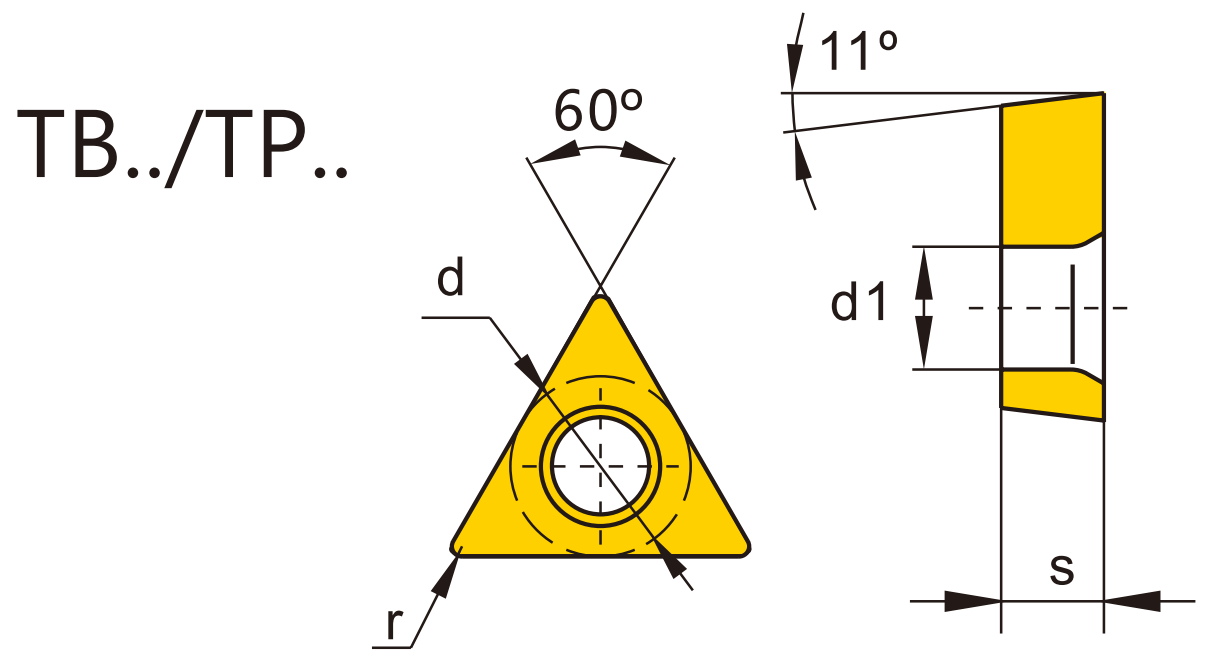

| 型 号 Model |
尺寸 | ||
|---|---|---|---|
| d | s | d1 | |
| TB..0601.. | 3.97 | 1.59 | 2.3 |
| TP..0802.. | 4.76 | 2.38 | 2.3 |
| TP..0902.. | 5.56 | 2.38 | 3.0 |
| TP..1102.. | 6.35 | 2.38 | 3.5 |
| TP..1103.. | 6.35 | 3.18 | 3.5 |
| TP..16T3.. | 9.525 | 3.18 | 4.5 |
主要参数
| 刀片外形 Insert shape |
型号 Model |
刀片材质及适用加工材料Insert grades and application | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| r | 倒棱 S02020 |
倒棱 S01525 |
KBN1000 | KBN900 | KBN910 | KBN980 | KBN710 | KBN7030 | KBN6020 | KBN610 | KBN5010 | ||
 |

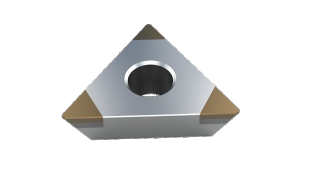

3NU-TPGW080202 | 0.2 |  |
|
 |
|
|
|
|
|
|||
| 3NU-TPGW080204 | 0.4 | |
|
|
|
|
|
|
|
||||
| 3NU-TPGW090202 | 0.2 | |
|
|
|
|
|
|
|
||||
| 3NU-TPGW090204 | 0.4 | |
|
|
|
|
|
|
|
||||
| 3NU-TPGW110302 | 0.2 | |
|
|
|
|
|
|
|
||||
| 3NU-TPGW110304 | 0.4 | |
|
|
|
|
|
|
|
||||
| 3NU-TPGW16T302 | 0.2 | |
|
|
|
|
|
|
|
||||
| 3NU-TPGW16T304 | 0.4 | |
|
|
|
|
|
|
|
||||
| 3NU-TPGW16T308 | 0.8 | |
|
|
|
|
|
|
|
||||
 |
1NU-TBGW060102 | 0.2 | |
|
|
|
|
|
|
|
|||
| 1NU-TBGW060104 | 0.4 | |
|
|
|
|
|
|
|
||||
| 1NU-TPGW080202 | 0.2 | |
|
|
|
|
|
|
|
||||
| 1NU-TPGW080204 | 0.4 | |
|
|
|
|
|
|
|
||||
| 1NU-TPGW090202 | 0.2 | |
|
|
|
|
|
|
|
||||
| 1NU-TPGW090204 | 0.4 | |
|
|
|
|
|
|
|
||||
| 1NU-TPGW110302 | 0.2 | |
|
|
|
|
|
|
|
||||
| 1NU-TPGW110304 | 0.4 | |
|
|
|
|
|
|
|
||||
| 1NU-TPGW16T302 | 0.2 | |
|
|
|
|
|
|
|
||||
| 1NU-TPGW16T304 | 0.4 | |
|
|
|
|
|
|
|
||||
| 1NU-TPGW16T308 | 0.8 | |
|
|
|
|
|
|
|
||||
 |
T3NU-TPGW080202 | 0.2 | |
|
|
|
|
|
|
|
|
||
| T3NU-TPGW080204 | 0.4 | |
|
|
|
|
|
|
|
|
|||
| T3NU-TPGW090202 | 0.2 | |
|
|
|
|
|
|
|
|
|||
| T3NU-TPGW090204 | 0.4 | |
|
|
|
|
|
|
|
|
|||
| T3NU-TPGW110302 | 0.2 | |
|
|
|
|
|
|
|
|
|||
| T3NU-TPGW110304 | 0.4 | |
|
|
|
|
|
|
|
|
|||
| 铸铁Cast Iron |  |
|
|
|
|||||||||
| 耐热合金Heat Resistant Alloy |  |
||||||||||||
| 淬硬钢Hardened Steel | |
|
|
|
|
||||||||
- 首选Preferred
- 可选optional
- 标准库存standard stock
- 订单生产order production
